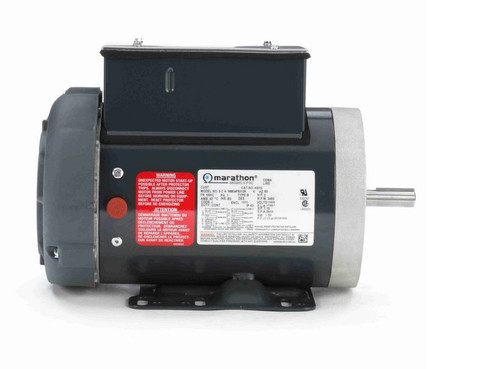

K615 Marathon 2 hp 115/230V 3600 RPM 56HC Frame TEFC Cap Start/Run Motor

K615 Marathon 2 hp 115/230V 3600 RPM 56HC Frame TEFC Cap Start/Run Motor

This Marathon 2 horsepower single-phase motor is designed for general-purpose applications requiring a C-face mount. It is suitable for replacing or installing in systems such as pumps or gearboxes that demand a reliable, capacitor start/run motor with a totally enclosed fan-cooled design.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 115/230V
• Amperage: 17.5/8.7 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56HC
• Shaft Dimensions: 5/8" diameter x 2" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base and a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gearboxes. Wiring diagrams are provided on the motor nameplate for straightforward installation. The motor includes capacitor start and capacitor run components for efficient operation and has a service factor of 1.15 with manual overload protection.

Warranty

1 Year Manufacturer Warranty
