107002.00 Leeson | Parallel Shaft 1/4 hp, 26 RPM 115/208-230 Electric Gear Motor

107002.00 Leeson Parallel Shaft 1/4 hp, 26 RPM 115/208-230 Electric Gear Motor

This Leeson parallel shaft gear motor delivers reliable 1/4 horsepower power with a low-speed output of 26 RPM, suitable for industrial applications requiring precise torque and controlled rotation. It is designed to replace compatible 1/4 hp motors with similar voltage and gear ratio specifications.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 26
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 5.4/2.7 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a gear ratio of 66, providing a torque output of 569 inch-pounds and an overhung load capacity of 650 pounds. It includes Class B insulation and a service factor of 1.15. The keyed shaft and ball bearings ensure secure mounting and smooth operation. Note that this motor does not include overload protection and is designed for applications compatible with its specified electrical and mechanical ratings.

Warranty

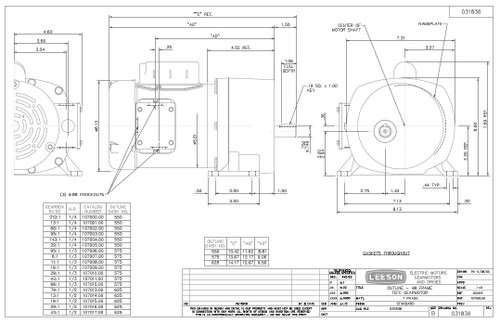

• Dimensional Drawing
