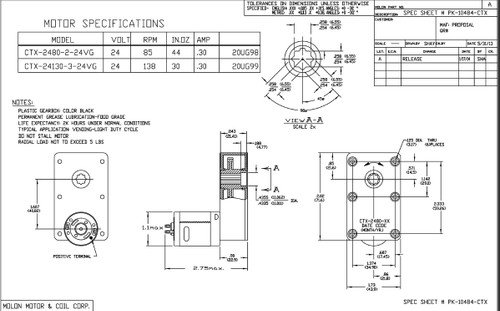

Molon CTX-24130-3 (24V) Gear Motor 1/64 hp 138 RPM 24 Volt DC

Molon CTX-24130-3 (24V) Gear Motor 1/64 hp 138 RPM 24 Volt DC

The Molon CTX-24130-3 is a compact 24 Volt DC gear motor delivering 1/64 horsepower and 138 RPM. Designed for applications such as valves and vending machines, this motor provides reliable reversible rotation and versatile mounting options.

Key Specifications

• Horsepower: 1/64 hp
• RPM: 138
• Voltage: 24 Volt DC
• Amperage: 0.3 amps
• Rotation: Reversible

Product Features & Fitment

This gear motor features a plastic gearcase and plastic gears, ensuring lightweight durability. It supports mounting in all positions and includes a hollow output shaft for flexible installation. Maximum torque is rated at 30 inch-ounces with an overhung load capacity of 1 lb.
