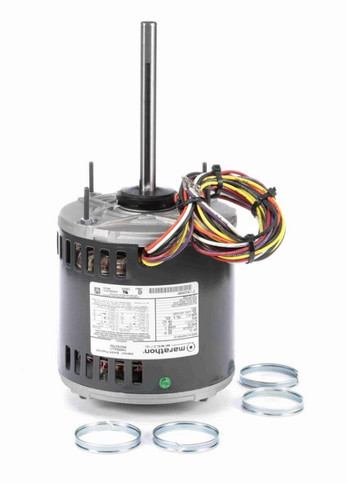

P245 Marathon 1/2 hp 115/208-230V 900 RPM ODPAO (no base) 56Z Frame Condenser Fan Motor
(No reviews)
Write a Review
Write a Review
Marathon
P245 Marathon 1/2 hp 115/208-230V 900 RPM ODPAO (no base) 56Z Frame Condenser Fan Motor
$649.98
$567.18
SKU
MP245
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/2 HP
RPM
900
Frame
56Z
Enclosure
ODP
Hertz
60 Hz
Amperage
3.1 Amps
Bearings
Ball Bearings
Insulation Class
Class B
- 1/2 hp 1200 RPM, 6.2/3.8-3.1 amps, 115/208-230 Volts 60 Hz, Permanent Split Capacitor (PSC)

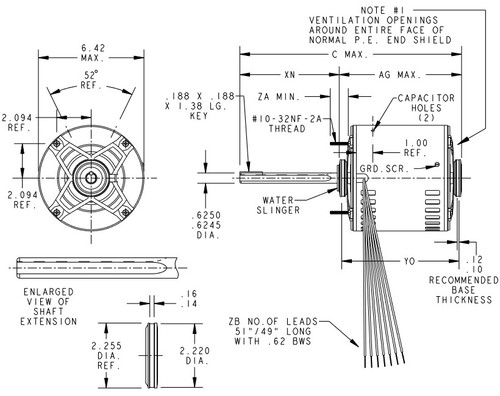

- NEMA 56Z Frame Keyed Shaft 5/8" Diameter x 6"
- Service Factor = 1.0, Thermal Protection = Automatic
- No Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. ODPAO = Open Open Drip Proof Air Over so motor must be in air-stream. 5KCP49PN9812S
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/2 HP |
| RPM | 900 |
| Frame | 56Z |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 3.1 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class B |
