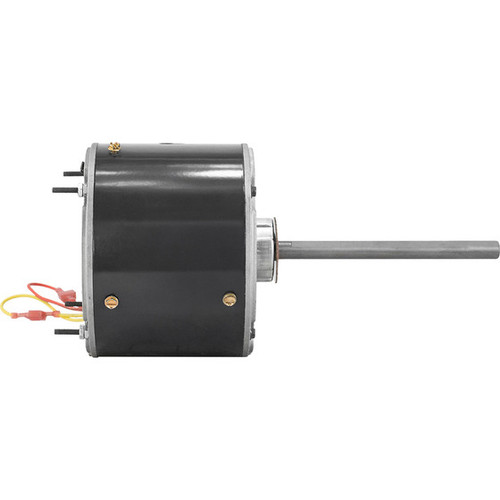

P3728 1/4HP 1075 RPM Condenser Fan Motor - Replaces EM3728F

P3728 1/4HP 1075 RPM Condenser Fan Motor - Replaces EM3728F

The PEMS P3728 is a direct replacement condenser fan motor designed to substitute Century EM3728F and equivalent models. It is ideal for HVAC condenser applications requiring reliable performance and compatibility with Rheem mounting configurations.

Key Specifications

• Horsepower: 1/4 HP
• RPM: 1075
• Voltage: 208-230 Volt
• Amperage: 1.70 Amp
• Enclosure: TEAO
• Frame / Diameter: 48Y Frame
• Bearings: Ball Bearing

Product Features & Fitment

This motor includes a 5 MFD/370V capacitor for immediate installation and features an automatic overload for motor protection. It is designed to operate at 60 Hz single-phase power with a maximum ambient temperature rating of 70 degrees Celsius. The motor also includes Rheem-compatible mounting holes for straightforward replacement and fitment.

Cross references include Century EM3728F, FSE1026SF, FSE1026SV1, Fasco D909, D7909, Packard 43732, 51732, Mars 10728, 10733, 20728, Smart Electric SE3178, SE3728, Nidec 1860, 1860H, Diversitech/Wagner WG840728, WG840728HT, and Grainger 111N65.

Cross Reference

• -  Century EM3728F, FSE1026SF, FSE1026SV1, Fasco D909, D7909 Packard 43732,51732, Mars 10728, 10733, 20728, Smart Electric SE3178, SE3728, Nidec 1860, 1860H, Diversitech/Wagner WG840728, WG840728HT, Grainger 111N65
