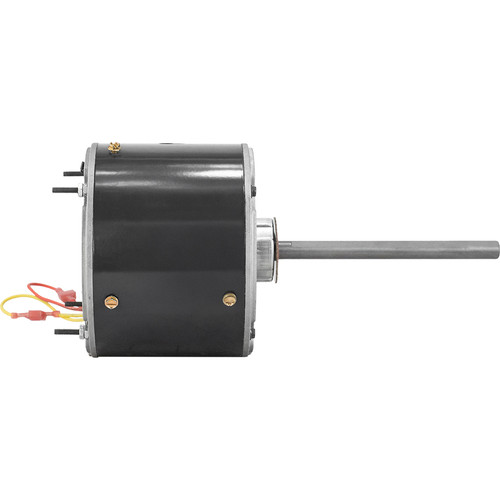

P3404 Condenser Fan Motor 1/4HP 825 RPM, Replaces EM3404F

P3404 Condenser Fan Motor 1/4HP 825 RPM, Replaces EM3404F

The PEMS P3404 condenser fan motor is a direct replacement for the Century Economaster EM3404F and compatible models. Designed for HVAC condenser fan applications, it delivers reliable performance with a 1/4 HP motor running at 825 RPM.

Key Specifications

• Horsepower: 1/4 HP
• RPM: 825
• Voltage: 208-230 V
• Amperage: 2.10 A
• Enclosure: TEAO
• Frame / Diameter: 48Y Frame
• Shaft Dimensions: 1/2" diameter x 6.00" length
• Rotation: Reversible
• Bearings: Ball Bearing

Product Features & Fitment

This motor includes a 5 MFD/370 V capacitor for easy installation and optimal starting performance. It features automatic overload protection and is rated for operation in ambient temperatures up to 70°C. The motor is equipped with 36-38" leads for straightforward wiring and a TEAO enclosure for enhanced durability. It is a direct interchange for multiple cross-reference part numbers including Century EM3404F, Fasco D792, Packard 40825F, Mars 10404, and others.

Cross Reference

• -
• Century EM3404F, FE1028SF, Fasco D792 Packard 40825F, 40825, 51874, Mars 10404, 10204,20404, Smart Electric SE3378, Nidec 1874,1874H, Diversitech/Wagner WG840204, WG840204HT, Grainger 111N67
