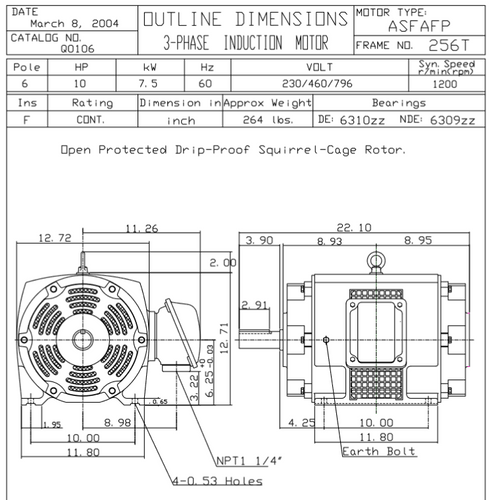

Q0106 TECO-Westinghouse 10 HP 1200 RPM 256T 230/460/796V ODP 3-Phase Oil Well Pump Motor

SKU:
Q0106
Weight:
335.00 LBS
Shipping:
Calculated at Checkout
$1,129.65
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 10 hp 1200 RPM, 25.8/12.9/7.45 amps 230/460/796 Volts 60 Hz. Three Phase
  • NEMA 256T Frame, 4 x 1 5/8" Dia. Keyed Shaft
  • Cast Iron Frame, Open Drip Proof
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Rodent Screens, 5% Minimum Slip
  • 1 Year Manufacture Warranty

Oil well pump motor for use on oil pumps. Also good for any application requiring NEMA Design D torques.
