Q0756 TECO-Westinghouse 75 HP 1200 RPM 405T 230/460/796V ODP 3-Phase Oil Well Pump Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 75 hp 1200 RPM, 175/87.5/50.6 amps 230/460/796 Volts 60 Hz. Three Phase

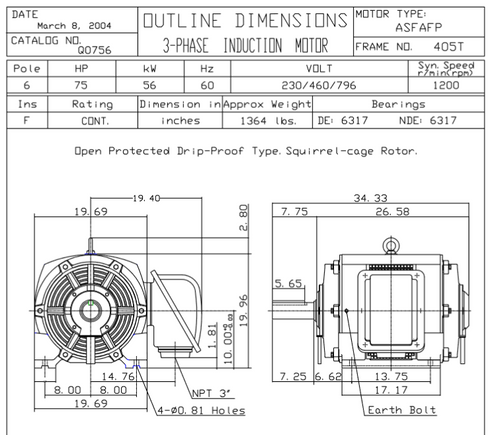

• NEMA 405T Frame, 7 3/4 x 2 7/8" Dia. Keyed Shaft

• Cast Iron Frame, Open Drip Proof

• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Rodent Screens, 5% Minimum Slip

• 1 Year Manufacture Warranty


Oil well pump motor for use on oil pumps. Also good for any application requiring NEMA Design D torques.
