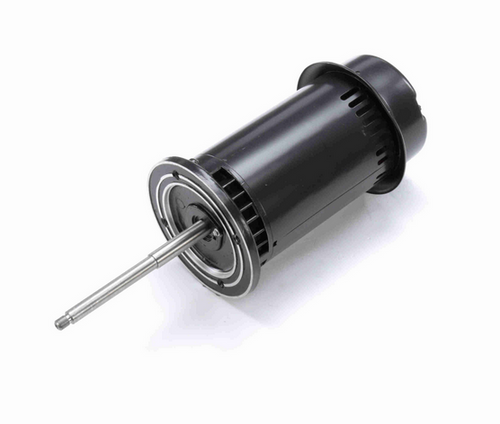

R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES

SKU:
R1152ES
Weight:
31.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $447.20
Now: $379.00
Adding to cart… The item has been added
  • 1 1/2 hp 3600 RPM, 12.0 amps 230 Volts 60hz. Capacitor Start, Extended Shaft

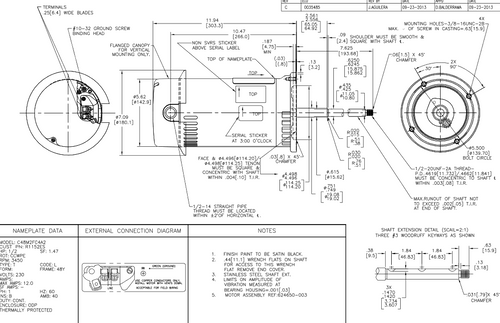

  • NEMA 48Y frame, Round-Flange, Threaded Stainless Steel Shaft 1/2" Diameter x 5 3/4"
  • Service Factor: 1.47, Overload protection = Auto
  • No Base, CCW pump end, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Direct replacement for motor for Sta-Rite pool and spa pumps requiring a single phase electric motor with a round-flange. Wiring diagram on motor name plate. ODP = Open Drip Proof. R1152ES. Replaces Sta-Rite A300FH
