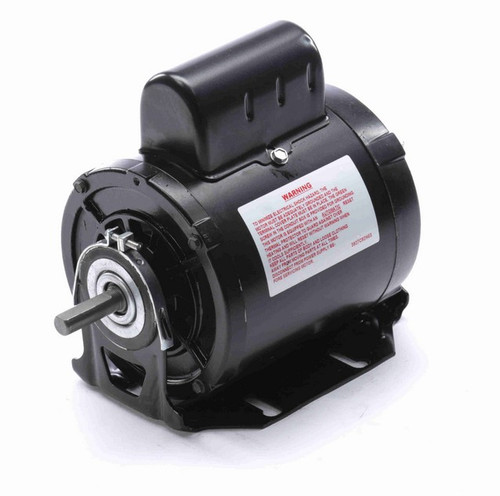

RS1030B Century 1/3 hp (1 speed) 115/230V 1800 RPM Open 48 Frame Cap Start Resilient Base Motor

RS1030B Century 1/3 hp (1 speed) 115/230V 1800 RPM Open 48 Frame Cap Start Resilient Base Motor

The RS1030B is a reliable 1/3 horsepower blower motor designed for HVAC applications requiring a single-speed operation. It serves as a direct replacement for Century motors with similar specifications, ideal for air circulation in residential and commercial buildings.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/230V, 60 Hz
• Amperage: 7.0/3.5 amps
• Enclosure: Open
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter, flat shaft
• Rotation: Reversible
• Bearings: Sleeve

Product Features & Fitment

This motor features a capacitor start design with a service factor of 1.0 and automatic thermal protection for enhanced durability. It is mounted on a resilient base to minimize vibration and noise during operation. The shaft orientation can be installed vertically or horizontally, providing versatile fitment options for various blower assemblies.

Warranty

1 Year Manufacturer Warranty
