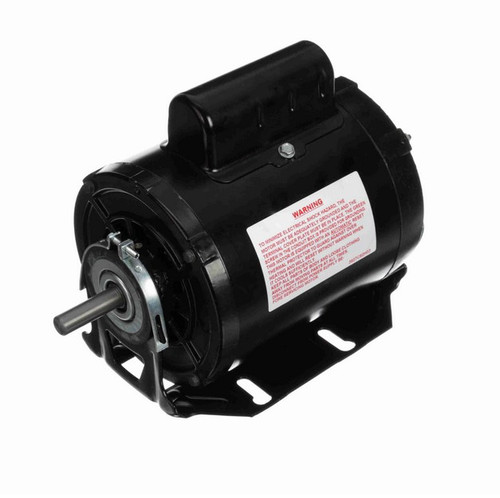

RS1035A Century 1/3 hp (1 speed) 115/230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

RS1035A Century 1/3 hp (1 speed) 115/230V 1800 RPM ODP 48 Frame Cap Start Resilient Base Motor

The RS1035A is a reliable 1/3 horsepower blower motor designed for HVAC applications, suitable for replacing existing motors with similar specifications. It operates at 1800 RPM and supports both 115 and 230 Volt power supplies, making it versatile for various air-moving tasks in residential and commercial buildings.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 5.6/2.8 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a capacitor start design with a service factor of 1.35 and automatic thermal protection for enhanced durability. It includes a resilient base for stable mounting and can be installed with the shaft oriented either vertically or horizontally to accommodate various blower configurations.

Warranty

1 Year Manufacturer Warranty
