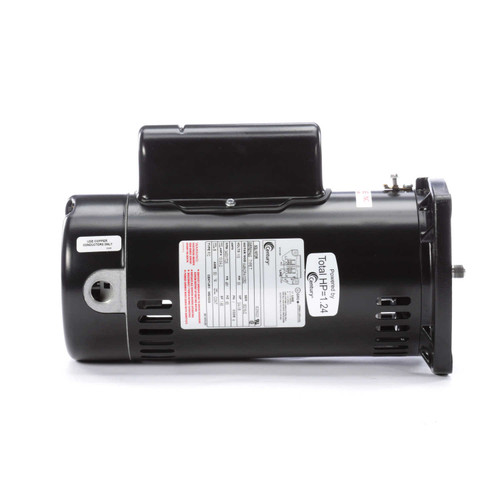

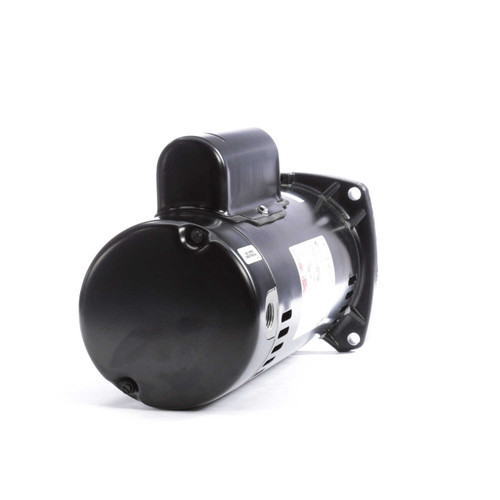

SQL1072R Century 3/4 hp 2-Speed 48Y Frame 115V Square Flange Pool Motor Century # SQL1072R

SKU:
SQL1072R
Weight:
30.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $515.20
Now: $436.60

Century 48Y Square Flange - Energy Efficient - Two Speed Pool Motor

  • 3/4 HP 3450/1725 RPM - High/Low Speed
  • 13.0/4.2 amps, 115 Volts, Single Phase, 60hz
  • Automatic Overload Protection - Service Factor 1.85
  • Energy Efficient High and Low Speed
  • Non-Reversible - CCW Rotation facing the shaft
  • Open Drip Proof - Ball Bearings
  • 5/8" diameter threaded stainless steel shaft
  • Meets California Energy Commission Appliance Regulations 2008

Does Not come with power cord or High/Low toggle switch

Square Flange replacement inground pool pump motor. This is a 2 speed motor. Motor fits many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair
Wiring diagram on motor name plate
1 year warranty

Century Mod No. K48K2PA102, K48K2PA102B2
