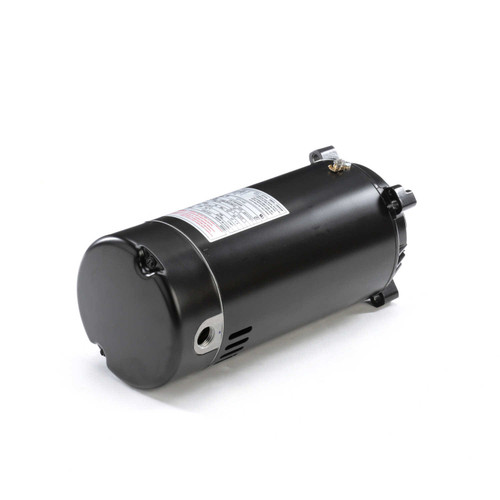

ST1102 Century 1 hp 3450 RPM 56J Frame 115/230V Energy Efficient Swimming Pool Motor

ST1102 Century 1 hp 3450 RPM 56J Frame 115/230V Energy Efficient Swimming Pool Motor

This single-speed, energy-efficient motor is designed for swimming pool pump applications, commonly replacing motors on inground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It features a 56J frame and is suitable for use with various standard 1081 pump duty motors.

Key Specifications

• Horsepower: 1 HP
• RPM: 3450
• Voltage: 115/230V, 60 Hz
• Amperage: 18.6/9.3 amps
• Frame / Diameter: 56-J Frame
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft, non-reversible
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor includes automatic overload protection with a service factor of 1.50 and features a C-face mount with a round body and no base. It has four threaded bolt holes on the face for pump mounting, spaced 5 7/8" on center across the shaft. Wiring diagrams are provided on the motor nameplate for ease of installation. This motor is compatible with AO Smith/Century models C48L2N134 and C48L2N134C2, as well as the US Electric equivalent EST1102.
