U30P2H Nidec 30 hp 1800 RPM 286T Frame 200V TEFC 3-Phase Electric Motor
U30P2H Nidec 30 hp 1800 RPM 286T Frame 200V TEFC 3-Phase Electric Motor
U30P2H Nidec 30 hp 1800 RPM 286T Frame 200V TEFC 3-Phase Electric Motor
U30P2H Nidec 30 hp 1800 RPM 286T Frame 200V TEFC 3-Phase Electric Motor

Nidec

U30P2H Nidec 30 hp 1800 RPM 286T Frame 200V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$2,711.70
$2,421.44
SKU U30P2H
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286T
Enclosure TEFC
Hertz 60 Hz
Amperage 81 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 1800 RPM, 81 amps 200 Volts 60 Hz Three Phase Motor

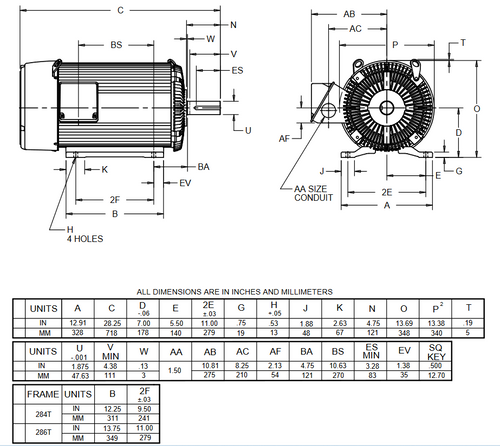

  • NEMA 286T frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. CN12

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286T
Enclosure TEFC
Hertz 60 Hz
Amperage 81 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
