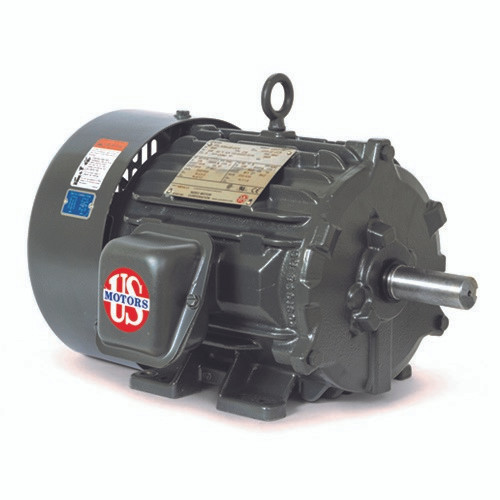

U3P2H Nidec 3 hp 1800 RPM 182T Frame 200V TEFC 3-Phase Electric Motor

• 3 hp 1800 RPM, 9.0 amps  200 Volts 50/60 Hz Three Phase Motor
• NEMA 182T frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
• Service Factor: 1.25, Overload protection = None
• Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DA72
