U5P4D Nidec 5 hp 900 RPM 254T Frame 208-230/460V TEFC 3-Phase Electric Motor

U5P4D Nidec 5 hp 900 RPM 254T Frame 208-230/460V TEFC 3-Phase Electric Motor

This Nidec 5 horsepower, 900 RPM electric motor is designed for general-purpose industrial applications requiring a reliable three-phase power source. It is suitable for replacing or upgrading motors with similar specifications and frame size.

Key Specifications

• Horsepower: 5 hp
• RPM: 900
• Voltage: 208-230/460 V
• Amperage: 15.9-14.8/7.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

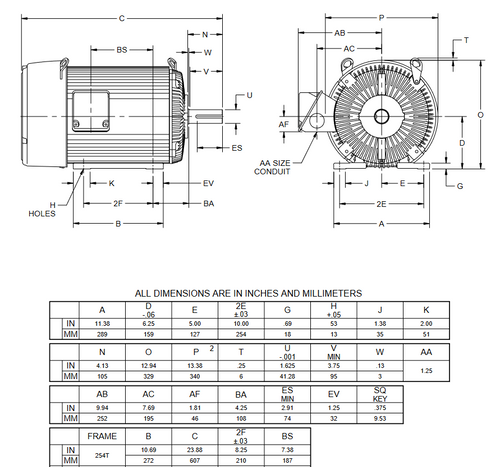

• Frame / Diameter: NEMA 254T
• Shaft Dimensions: 1 5/8" Diameter x 4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and is equipped with Class F insulation for enhanced thermal protection. It includes a wiring diagram on the nameplate to facilitate correct electrical connections. This motor does not include overload protection and is designed for use in a variety of industrial equipment setups.

Warranty

1 Year Manufacturer Warranty
