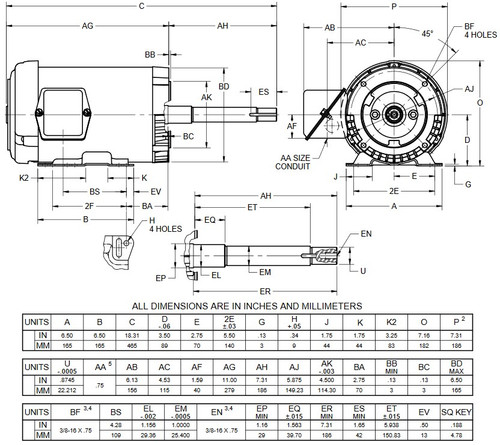

UJ3P1DFP US Motors 3 hp 3600 RPM 3-phase 145JP Frame 208-230/460V Close-Coupled Pump Motor
UJ3P1DFP US Motors 3 hp 3600 RPM 3-phase 145JP Frame 208-230/460V Close-Coupled Pump Motor
UJ3P1DFP US Motors 3 hp 3600 RPM 3-phase 145JP Frame 208-230/460V Close-Coupled Pump Motor
UJ3P1DFP US Motors 3 hp 3600 RPM 3-phase 145JP Frame 208-230/460V Close-Coupled Pump Motor

US Motors

UJ3P1DFP US Motors 3 hp 3600 RPM 3-phase 145JP Frame 208-230/460V Close-Coupled Pump Motor

(No reviews) Write a Review
$747.50
$678.44
SKU UJ3P1DFP
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/california.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 145JP
Enclosure TEFC
Hertz 60 Hz
Amperage 7.2/3.6 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 HP 3600 RPM, 8.1-7.2/3.6 amps, 208-230/460V 60hz. 3 Phase.
  • NEMA 145JP Rolled Steel Frame, JP stainless steel shaft
  • 1.25 Service Factor, Auto Overload Thermal Protection, Class F insulation
  • Reversible Rotation, Totally Enclosed Fan Cooled,
  • Rigid Base, Ball Bearings,

Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. TEFC = Totally Enclosed Fan Cooled, Proof, FL33

Specifications
Compliance Tab /content/product_tabs/california.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 145JP
Enclosure TEFC
Hertz 60 Hz
Amperage 7.2/3.6 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
!
