R2-R462 | Venmar Make Up Air Motor 02101, 1/17 hp, 1650 RPM, 115 volts

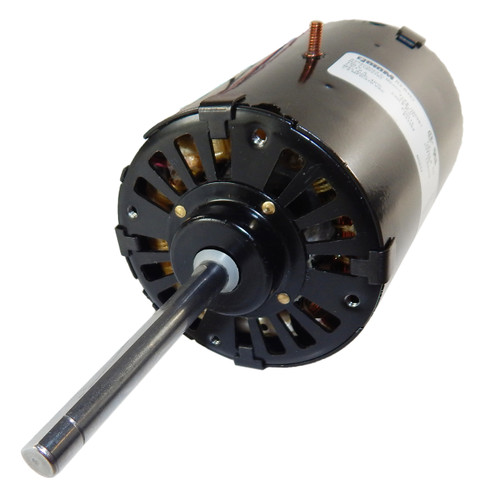

Venmar Make Up Air Motor 02101 (R2-R462)

This direct aftermarket replacement motor is designed for Venmar Make Up Air units, specifically models such as Venmar HRV 02101 and related part numbers. It delivers reliable performance for HVAC applications requiring a compact, double-shafted motor.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 1650
• Voltage: 115 V
• Amperage: 1.0 A
• Frame / Diameter: 3.3"
• Shaft Dimensions: 3 1/8" x 3/8" x 3 1/8" (Double Shafted)
• Rotation: CCW Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a 3-speed design and requires a 7.5 MFD oval capacitor (Part #7.5DV) for operation. It includes two side mounting studs; caution is advised during installation to avoid threading the studs too far, which can cause contact with the inner motor coil and lead to motor failure. The motor comes with leads only, requiring careful splicing of the old connector for proper connection.

Cross Reference

• Venmar Make Up Air Motor. Venmar HRV 02101, 7190-2271, 7190-2795, 7190-1359, 5KCP84DFK143P, Kit 12027, 2029, 12109, M4611

Warranty

1 Year Manufacturer Warranty
