Marathon
X603 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame PSC Resilient Base Motor
(No reviews)
Write a Review
Write a Review
Marathon
X603 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame PSC Resilient Base Motor
$678.50
$519.95
SKU
X603
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
115/208/230V
Horsepower
3/4 HP
RPM
1800
Frame
56Z
Enclosure
ODP
Hertz
60 Hz
Amperage
6.0 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B

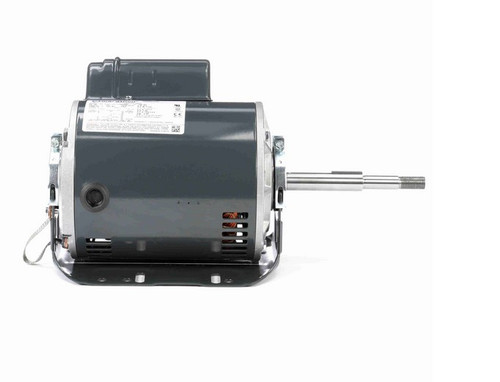

X603 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame PSC Resilient Base Motor
The X603 Marathon motor is a 3/4 horsepower, single-speed blower motor designed for commercial and industrial HVAC applications. It replaces Huebsch commercial laundry dryer motors and is suitable for air movement inside buildings.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1800
- Voltage: 115/208-230V, 60 Hz
- Amperage: 12.0/5.8-6.0 amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56Z Frame

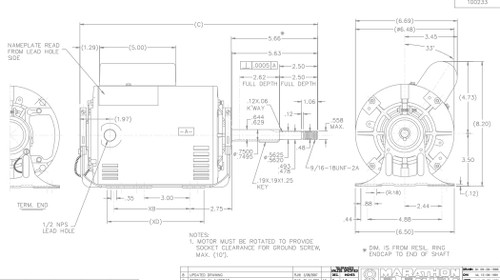

- Shaft Dimensions: 5 5/8" length x 5/8" diameter
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a resilient base for stable mounting and includes automatic thermal protection for enhanced durability. It operates with a permanent split capacitor (PSC) and Class B insulation. The shaft orientation can be vertical or horizontal to accommodate various installation requirements.
Cross Reference
- Huebsch commercial laundry dryer motors
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 115/208/230V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Frame | 56Z |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 6.0 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
- Huebsch commercial laundry dryer motors
