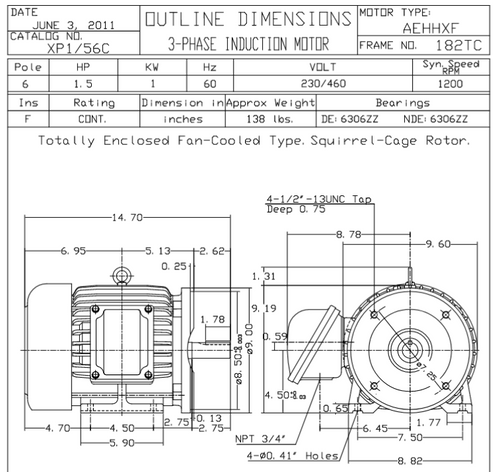

XP1/56C TECO-Westinghouse 1 1/2 HP 1200 RPM 182TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

TECO WESTINGHOUSE NEMA PREMIUM ROUND MOTOR

• 5 hp 1200 RPM, 1-Speed, 5.10/2.55 amps, 230/460 Volts 60 Hz. Three Phase
• 182TC Cast Iron Frame, Shaft: 1 1/8" x 2 5/8" with Key
• Ball Bearing, Reversible Rotation, Overload Protector: Manual
• Service Factor = 1.15, Insulation Class F
• Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
• 1 Year Manufacture Warranty

Explosion Proof Motor With C-Face and Base For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)
