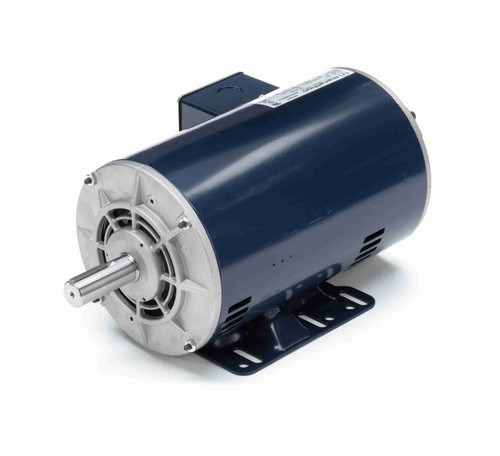

Y466 Marathon 1 1/2 hp (2 speed) 460V 1800/900 RPM ODP 145T Frame 3-Phase Variable Torque Motor

Y466 Marathon 1 1/2 hp (2 speed) 460V 1800/900 RPM ODP 145T Frame 3-Phase Variable Torque Motor

This Marathon 1 1/2 horsepower, two-speed motor is designed for variable torque applications such as blowers and pumps. It features a 3-phase, 460V configuration with dual winding speeds, providing reliable performance for equipment requiring variable running loads.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800/900
• Voltage: 460V, 60 Hz
• Amperage: 2.2 / 1.1 amps
• Enclosure: Open Drip Proof (ODP)

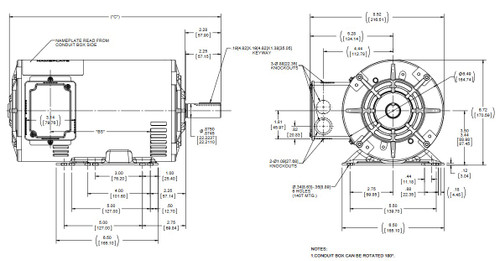

• Frame / Diameter: NEMA 145T Frame
• Shaft Dimensions: 2 1/4" length x 7/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a rigid base for stable mounting and is designed for horizontal shaft orientation. It utilizes Class B insulation and does not include thermal protection. The dual winding allows for two-speed operation, making it suitable for applications with variable load requirements.

Warranty

1 Year Manufacturer Warranty
