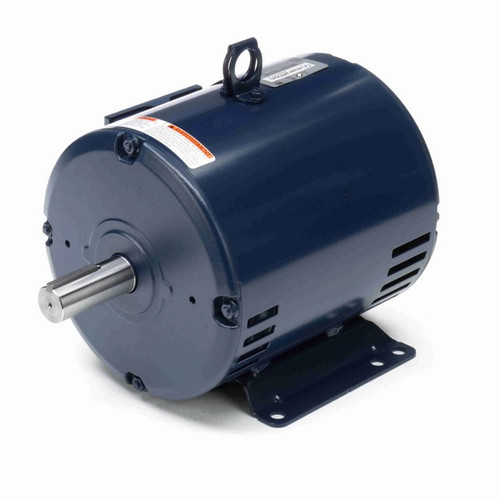

Y409B Marathon 2 hp (2 speed) 460V 1800/1200 RPM ODP 182T Frame 3-Phase Variable Torque Motor
(No reviews)
Write a Review
Write a Review
Marathon
Y409B Marathon 2 hp (2 speed) 460V 1800/1200 RPM ODP 182T Frame 3-Phase Variable Torque Motor
$1,199.95
SKU
MY409A
Availability
Subject to Availability
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
STATUS
DISCONTINUED
Voltage
460V
Horsepower
2 HP
RPM
1800
Phase
Three Phase
Frame
182T
Enclosure
ODP
Hertz
60 Hz
Amperage
2.0 Amps
Bearings
Ball Bearings
Speeds
2-Speed
Insulation Class
Class F
Rotation
Reversible
Mounting
Rigid Base
LIMITED STOCK AVAILABLE
- 2 hp 1800/1200 RPM, 3.2, 2.0 amps, 460 Volts 60 Hz, 3-Phase, 2 Winding
- NEMA 182T Frame, Shaft 2 7/8" x 1 1/8" Diameter, 2 speed
- Service Factor = 1.15, Thermal Protection = None
- Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
- 1 Year Manufacture Warranty
This is a newer variant of motor Y409B. For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 182TTDBD7211
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| STATUS | DISCONTINUED |
| Voltage | 460V |
| Horsepower | 2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 182T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 2.0 Amps |
| Bearings | Ball Bearings |
| Speeds | 2-Speed |
| Insulation Class | Class F |
| Rotation | Reversible |
| Mounting | Rigid Base |
