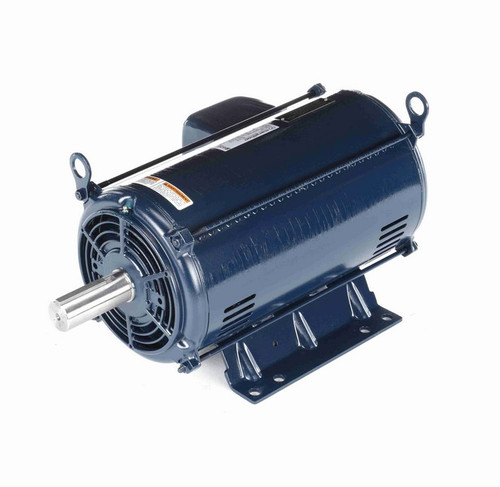

Y456 Marathon 7 1/2 hp (2 speed) 200-230V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor

(No reviews) Write a Review

$2,536.21

$2,171.20

SKU MY456

UPC 7.23E+11

Availability LIMITED STOCK

Shipping Calculated at Checkout

Compliance Tab /content/product_tabs/p65warnings.html

ON SALE LIMITED TIME DISCOUNT

Voltage 200/230V

Horsepower 1/2 HP

RPM 1800

Phase Three Phase

Frame 254T

Enclosure ODP

Hertz 60 Hz

Amperage 11.0 Amps

Bearings Ball Bearings

Speeds 2-Speed

Insulation Class Class F

Rotation Reversible

Mounting Rigid Base

Current Stock:

Qty

Adding to cart… The item has been added

7 1/2 hp 1800/1200 RPM, 20.8, 11.0 amps, 200-230 Volts 60 Hz, 3-Phase, 2 Winding

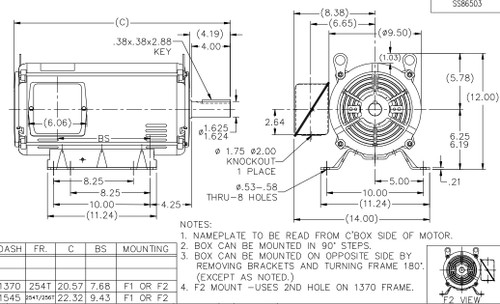

NEMA 254T Frame, Shaft 4" x 1 5/8" Diameter, 2 speed
Service Factor = 1.15, Thermal Protection = None
Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 254TTDX7278

Compliance Tab	/content/product_tabs/p65warnings.html
ON SALE	LIMITED TIME DISCOUNT
Voltage	200/230V
Horsepower	1/2 HP
RPM	1800
Phase	Three Phase
Frame	254T
Enclosure	ODP
Hertz	60 Hz
Amperage	11.0 Amps
Bearings	Ball Bearings
Speeds	2-Speed
Insulation Class	Class F
Rotation	Reversible
Mounting	Rigid Base
