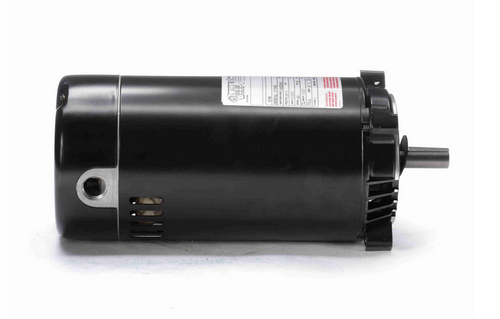

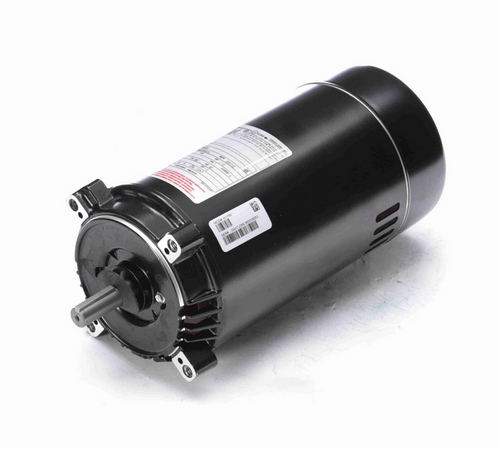

K1150 Century 1-1/2 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1150

SKU:
K1150
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
10% DISCOUNT
Was: $245.66
Now: $221.09
  • 1 1/2 hp 3600 RPM, 20.6/10.3 amps 115/230 Volts 60hz. Capacitor Start
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.3, Overload protection = Auto
  • No Base, CCW pump end, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Motor for pool and spa pumps requiring a single phase electric motor with a C-face mount.  Keyed shaft, Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. K1150
