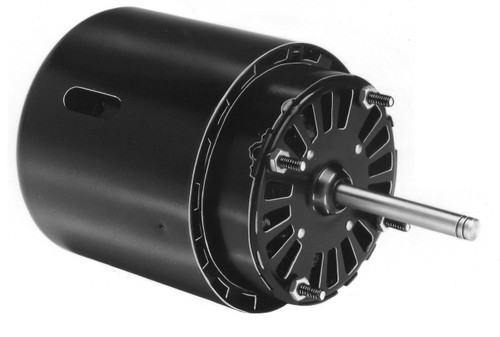

Fasco D475 Motor | 1/15 hp 1550 RPM CCW 3.9" Diameter 460 Volts (Tecumseh)
The Fasco D475 is a single-phase motor designed for HVAC and industrial applications, offering reliable performance as a direct replacement for Tecumseh and other compatible models. It is suitable for equipment requiring a 1/15 horsepower motor with counterclockwise shaft rotation.
Key Specifications
- Horsepower: 1/15 hp
- RPM: 1550
- Voltage: 460 Volts
- Amperage: 0.6 amps
- Frame / Diameter: 3.9"
- Shaft Dimensions: 5/16" diameter x 2 1/2" length
- Rotation: Counterclockwise (CCWSE)
- Bearings: Sleeve bearings
Product Features & Fitment
This motor features a stud mount with a bolt circle diameter of 2.85" for secure installation. The motor length excluding the shaft measures 4 1/2", making it compatible with various HVAC units. It is a suggested replacement for Tecumseh models 810G037A47, 5KSP11FG1197CS, JA2R308, as well as AO Smith/Century Universal 981 and Dayton 48GP05.
Cross Reference
- Tecumseh 810G037A47, 5KSP11FG1197CS, JA2R308. Replaces AO Smith/Century Universal 981, Dayton 48GP05
Warranty
1 Year Manufacturer Warranty
