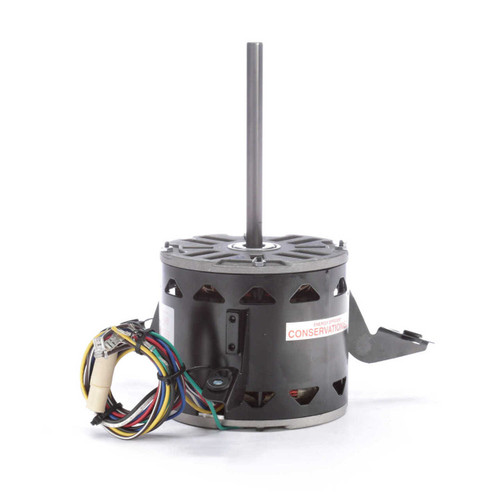

FM1056 Century 1/2 hp 1075 RPM 3-Speed 208-230V 5.6" Dia. Furnace Motor Century # FM1056

FM1056 Century 1/2 hp 1075 RPM 3-Speed 208-230V 5.6" Dia. Furnace Motor

This Century FM1056 furnace motor is a direct drive blower motor designed for residential and commercial HVAC systems. It replaces compatible Century and Dayton furnace blower motors, providing reliable performance in heating applications.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 208-230V, 60 Hz
• Amperage: 3.4 Amps
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" diameter x 5.5" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a torsion flex mount and is designed for all-angle mounting with sleeve bearings for durability. It includes 24" leads for easy electrical connections. A 10 MFD 370V capacitor is required for operation but is not included. The motor length excluding the shaft measures 4.86". This motor is thermally protected, UL recognized, and CSA certified for safety and reliability.

Warranty

1 Year Manufacturer Warranty
