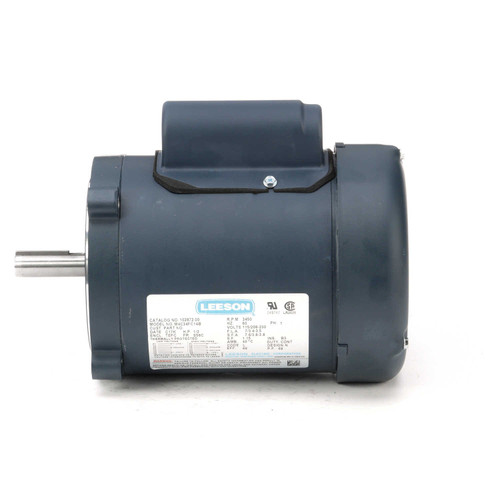

102872.00 Leeson | 1/2 hp 3450 RPM 56C Frame TEFC C-Face (no base) 115/208-230 Volts

102872.00 Leeson | 1/2 hp 3450 RPM 56C Frame TEFC C-Face (no base) 115/208-230 Volts

This Leeson 1/2 horsepower single-phase electric motor is designed for general-purpose applications requiring a C-face mount. It replaces motors with similar specifications and is suitable for driving pumps, gear heads, and other equipment needing a keyed shaft and TEFC enclosure.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/208-230 Volts
• Amperage: 7.0/3.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

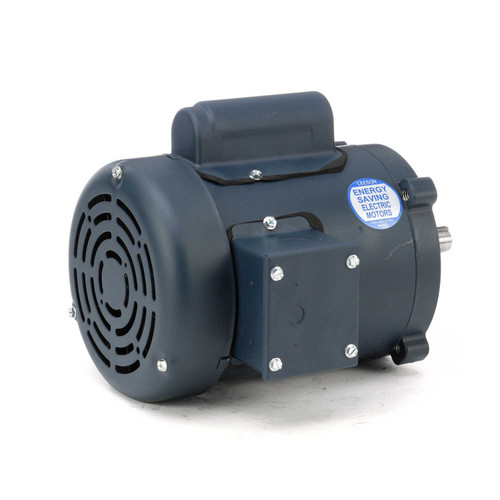

This motor features a round body design with no base, allowing flexible mounting options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gear heads. The shaft has a keyway for positive drive connection. Wiring details are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
