102916.00 Leeson | 1/4 hp 1725 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230 Volts

102916.00 Leeson | 1/4 hp 1725 RPM 56C Frame TEFC C-Face Rigid Base Motor

This Leeson general-purpose single-phase electric motor is designed for various industrial applications requiring a 1/4 hp motor with a C-face mount. It is suitable for replacing or installing in equipment needing a rigid base mount with a keyed shaft and totally enclosed fan-cooled (TEFC) enclosure.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115/208-230 Volts, 60 Hz
• Amperage: 5.4/2.7 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

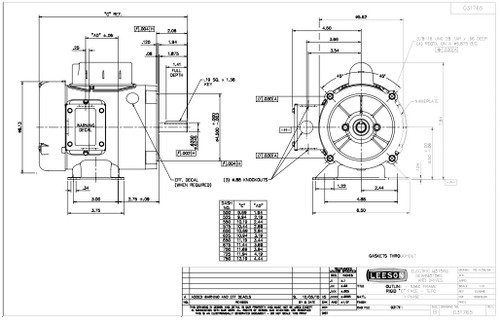

This motor features a rigid base mount combined with a C-face for versatile installation options. The shaft includes a keyway for secure coupling, and the motor face has four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy mounting of pumps or gearheads. A wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
