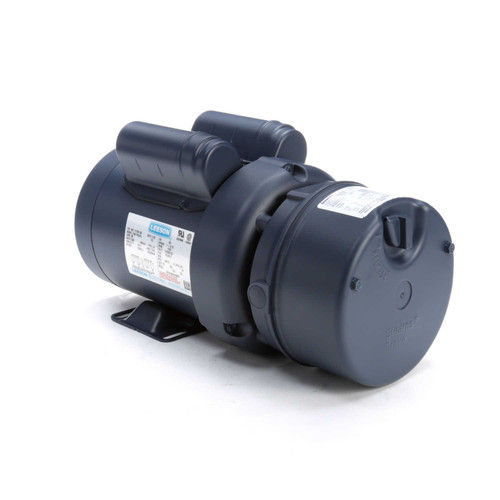

111951.00 Leeson | 1 hp 1725 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 115/208-230V

111951.00 Leeson | 1 hp 1725 RPM 56C Frame TEFC C-Face (Rigid Base) Brake Motor 115/208-230V

This Leeson 1 hp brake motor is designed for reliable industrial applications requiring controlled stopping and holding. It replaces standard motors where fail-safe braking is essential, featuring a TEFC enclosure and rigid base with C-face mounting for versatile installation.

Key Specifications

• Horsepower: 1 hp
• RPM: 1725
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 10.6/5.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

This motor includes a fail-safe, spring-set brake that automatically stops the load when power is removed. The brake coil, manufactured by Stearns, operates at 115/230 VAC and is wired into the motor’s conduit box for easy connection. It can be configured to engage either when power to the motor is off or independently. A manual release is built in for convenience during power outages or maintenance. The motor features a rigid base with C-face mounting for secure and flexible installation.

Warranty

1 Year Manufacturer Warranty
