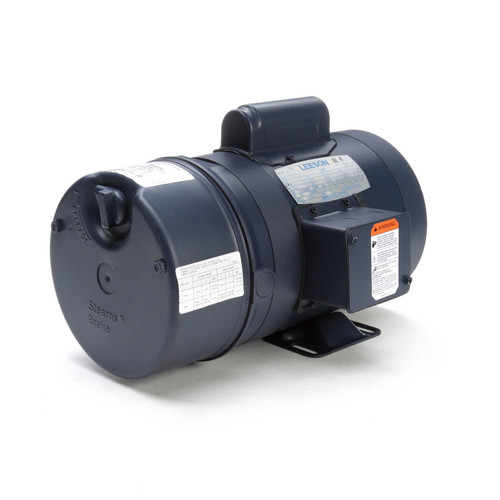

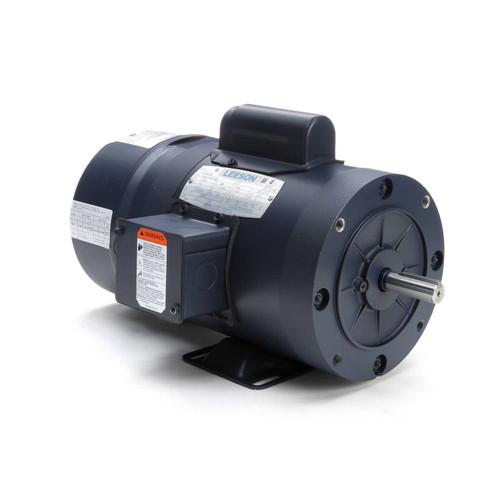

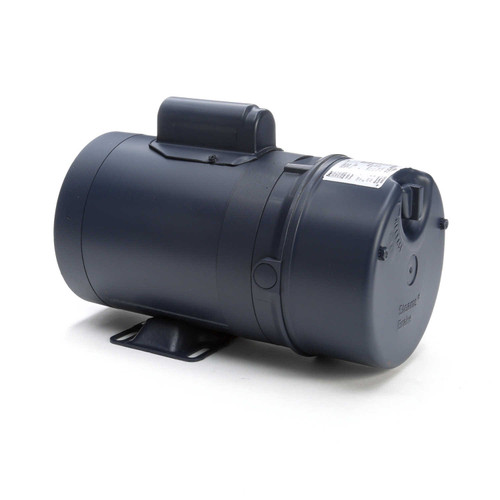

This Leeson 1/3 hp brake motor is designed for reliable stopping and holding applications, featuring a totally enclosed non-ventilated (TENV) design. It is suitable for replacing or upgrading motors requiring a 56C frame with C-face rigid base mounting.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 5.8/2.9 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)

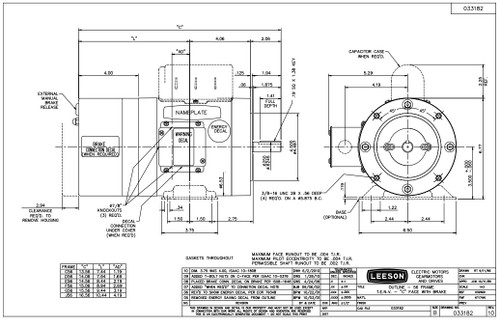

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length

Product Features & Fitment

This motor features a fail-safe, spring-set brake manufactured by Stearns that automatically stops the load when power is turned off. The brake coil leads are accessible in the motor’s conduit box and can be wired to engage either when power is removed from the motor or independently. A power-off manual release is included for convenience and emergency use, which resets automatically. The motor is mounted on a rigid base with a C-face configuration for secure installation.

Warranty

1 Year Manufacturer Warranty
