6127 Nidec | 1/3 hp 1625 RPM 1-Speed 208-230V; 5.6" Blower Motor

SKU:: 6127
UPC:: 6.63E+11
Weight:: 15.16 LBS
Width:: 6.00 (in)
Height:: 6.00 (in)
Depth:: 9.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 208/230V
Horsepower:: 1/3 HP
RPM:: 1625
Type:: Permanent Split Capacitor
Amperage:: 2.2 Amps
Bearings:: Sleeve Bearings
Speeds:: 1-Speed
Insulation Class:: Class B
Rotation:: Clockwise
Mounting:: Resilient
Duty:: Continuous Duty

Current Stock:

Was: $366.85

Now: $327.75

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

6127 Nidec 1/3 HP 1625 RPM 1-Speed 208-230V 5.6" Blower Motor

This 1/3 horsepower blower motor operates at 1625 RPM and is designed for HVAC applications requiring a reliable, continuous-duty motor. It serves as a suggested aftermarket replacement for Copeland models 050-0108-00, K55HXECE2645, 050-0018-00, and K055SZJ8106013B.

Key Specifications

Horsepower: 1/3 hp
RPM: 1625
Voltage: 208-230V
Amperage: 2.2 amps
Enclosure: Totally Enclosed Air Over (TEAO)

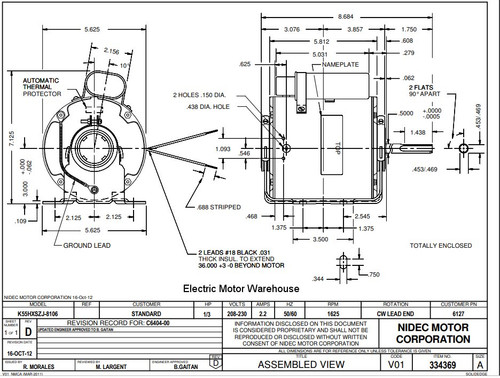

Frame / Diameter: 5.6" diameter, motor case length 5.812"
Shaft Dimensions: 1/2" diameter x 1.75" length
Rotation: Clockwise (CW) lead end
Bearings: Sleeve bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection, suitable for continuous duty in ambient temperatures up to 50°C. It includes a resilient mount and a capacitor for easy installation. The motor comes with 36" leads for flexible wiring options.
