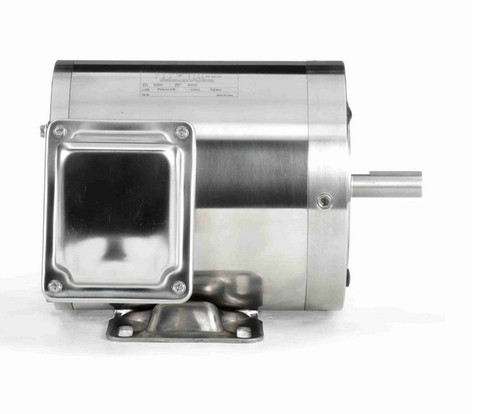

N410 Marathon 1/3 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 208-230/460V Marathon Motor

SKU:
N410
Weight:
30.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $488.30
Now: $426.50
Adding to cart… The item has been added
  • 1/3 hp 1800 RPM, 1.3-1.2/0.65 amps 208-230/460 Volts 60hz. Three Phase
  • NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056T17VD5326
