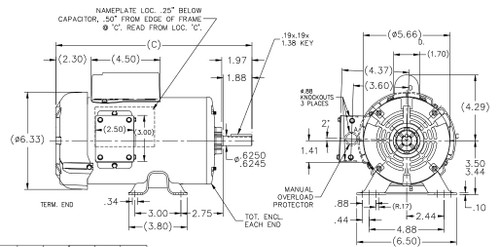

G332 Marathon 1/3 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

SKU:
G332
Weight:
20.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $381.00
Now: $331.20
Adding to cart… The item has been added
  • 1/3 hp 1800 RPM, 6.0/3.0 amps 115/208-230 Volts 60hz. Capacitor Start Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = Manual
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled

Marathon # 056C17F2049
Replaces Leeson M4C17FH33B, 102933.00
