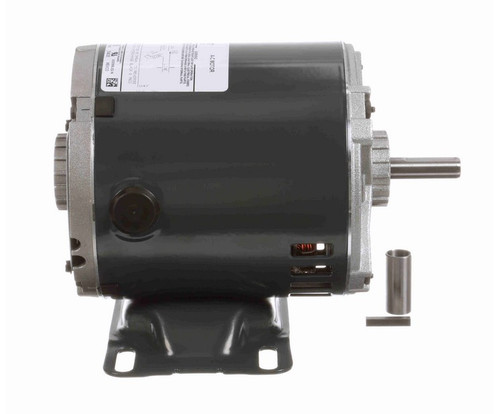

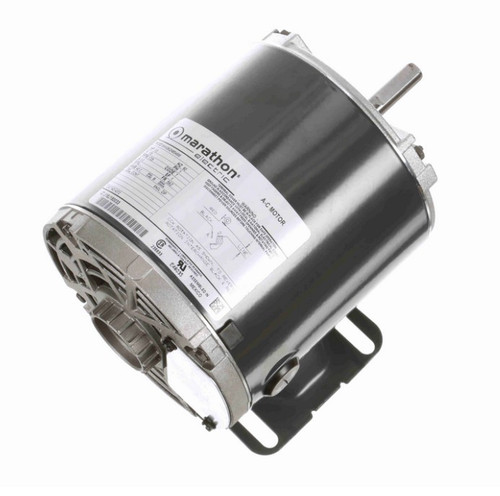

4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor
4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor

Marathon

4372 Marathon 1/3 hp 1800 RPM 56 Frame 115V Open Drip Marathon Electric Motor

(No reviews) Write a Review
$262.09
$227.70
SKU M4372
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 6.2 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 1800 RPM, 6.2 amps 115 Volts 60hz. Split Phase Motor
  • NEMA 56 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.0, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof, 5KH39QN9546

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 6.2 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class B
Mounting Rigid Base
!
