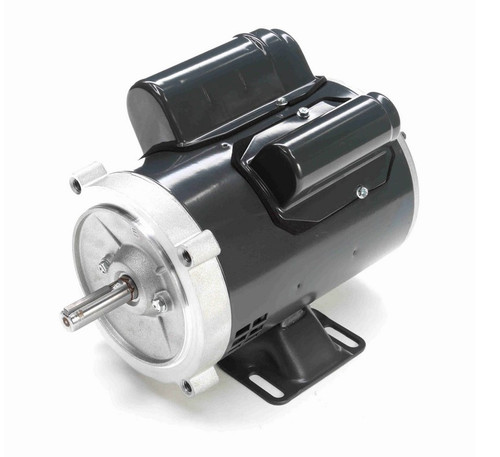

E252A Marathon 1/3 hp 1800 RPM 56C Frame ODP (with base) 100-120/200-240V Marathon Electric Motor

SKU:
E252A
Weight:
21.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $466.00
Now: $299.30
Adding to cart… The item has been added
  • 1/3 hp 1800 RPM, 3.8-3.7/1.9-1.8 amps 115/230 Volts 60hz. Capacitor Start - Capacitor Run Motor

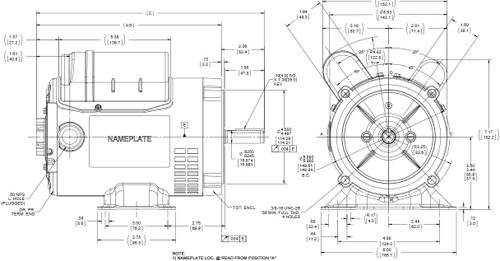

  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.35, Overload protection = Auto
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. 056B17D11032
