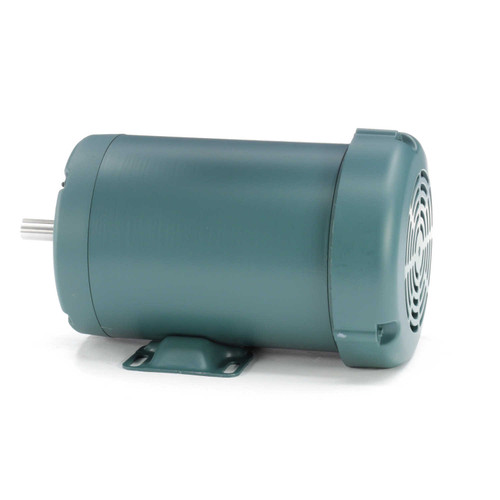

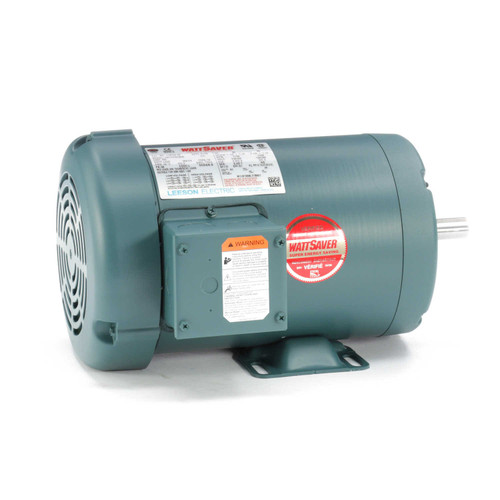

116759.00 Leeson | 1.5 hp 1725 RPM 56 Frame 230/460 Volts TEFC

116759.00 Leeson | 1.5 hp 1725 RPM 56 Frame 230/460 Volts TEFC

This Leeson 1.5 hp three-phase electric motor operates at 1725 RPM and is designed for general-purpose industrial applications. It replaces model 110444.00 and features a totally enclosed fan-cooled (TEFC) design for reliable performance in various environments.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1725
• Voltage: 230/460 Volts
• Amperage: 4.8/2.4 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base mount for secure installation and features a keyed shaft to ensure proper coupling with driven equipment. Wiring diagrams are provided on the motor nameplate to facilitate correct electrical connections. Designed with Class F insulation and a service factor of 1.25, this motor offers durability and flexibility for various industrial uses.

Cross Reference

• 110444.00

Warranty

1 Year Manufacturer Warranty
