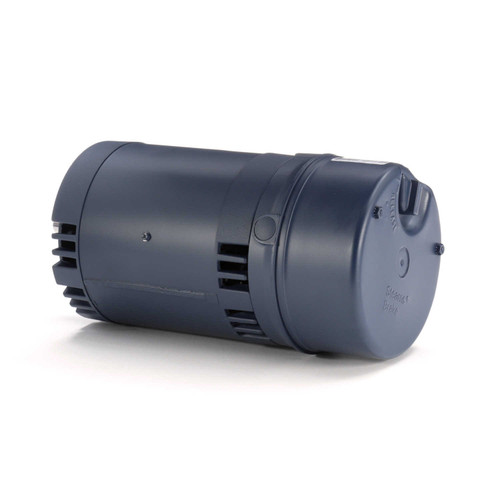

114166.00 Leeson | 1 hp 1725 RPM 56C Frame ODP C-Face (No Base) Brake Motor 208-230/460V

114166.00 Leeson 1 hp 1725 RPM 56C Frame ODP C-Face (No Base) Brake Motor 208-230/460V

This Leeson brake motor is a 1 horsepower, three-phase motor designed for industrial applications requiring reliable braking and precise load control. It replaces standard motors where fail-safe stopping and holding capabilities are essential.

Key Specifications

• Horsepower: 1 hp
• RPM: 1725
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 4.2/2.1 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

This motor features a round body with no base and a C-face mount for direct coupling. It is equipped with a fail-safe, spring-set brake manufactured by Stearns that automatically stops and holds the load when power is removed. The brake coil operates at 230/460 VAC, 60 Hz, and its leads are routed into the motor’s conduit box for easy wiring. A manual release is included for convenient brake disengagement during power outages or maintenance.

Warranty

1 Year Manufacturer Warranty
