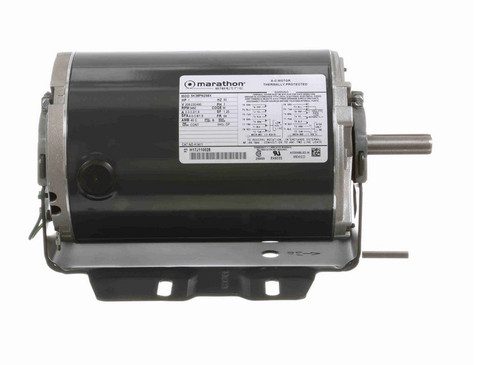

K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor
K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

Marathon

K1411 Marathon 1 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

(No reviews) Write a Review
$510.83
$439.53
SKU MK1411
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting Resilient
Adding to cart… The item has been added
Description
  • 1 hp 3600 RPM, 3.3-3.2/1.6 amps 208-230/460 Volts 60hz. 3 phase Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = Auto
  • Reversible, Resilient Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof, 5K38PN258X

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting Resilient
!
