1139VG Nidec 1/2 hp 575 RPM 230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor
1139VG Nidec 1/2 hp 575 RPM 230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor
1139VG Nidec 1/2 hp 575 RPM 230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor
1139VG Nidec 1/2 hp 575 RPM 230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor

Nidec

1139VG Nidec 1/2 hp 575 RPM 230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor

(No reviews) Write a Review
$806.15
$720.13
SKU 1139VG
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 575
Phase Three Phase
Frame 56YZ
Hertz 60 Hz
Amperage 3.1/1.6 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 575 RPM, 3.1/1.6 amps 230/460V Volts 60 Hz 3-Phase Motor
  • NEMA 56YZ Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 4 7/8" long
  • Service Factor = 1.0, Overload Protection: Thermostat
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Rev
  • 1 Year Manufacture Warranty

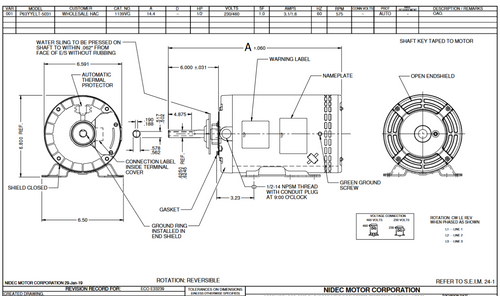

Commercial Condenser Fan Motor for applications using a variable frequency drive. Wiring diagram on motor name plate. OAO = Open Air-Over, P063ELT5031015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 575
Phase Three Phase
Frame 56YZ
Hertz 60 Hz
Amperage 3.1/1.6 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Mounting Rigid Base
!
