1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor
1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor
1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor
1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor

Nidec

1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor

(No reviews) Write a Review
$1,031.55
$920.58
SKU 1208
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 850
Frame 56CZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 9.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting C-Face
Adding to cart… The item has been added
Description
  • 1/3 hp 850 RPM (1 speed), 9.0 amps 115V Volts 60 Hz Split Phase Motor
  • 5.6" Dia. Frame, Rolled Steel, Keyed Shaft 5.8" Diameter x 2 3/8"
  • Service Factor = 1.35, Overload Protection: Auto
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible Rotation
  • 1 Year Manufacture Warranty

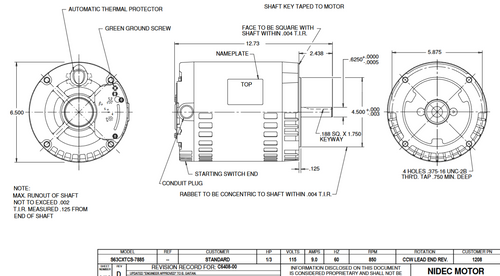

Direct drive blower motor having a C-Face mount. Wiring diagram on motor name plate. ODPAO = Open Drip-Proof Air Over, S063TCS7885012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 850
Frame 56CZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 9.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting C-Face
!
