Marathon
GT0021A Marathon 15 hp 3600 RPM 215T Frame 230/460V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT0021A Marathon 15 hp 3600 RPM 215T Frame 230/460V Open Drip Marathon Electric Motor
$868.25
SKU
GT0021A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
STATUS
IN STOCK
Voltage
230/460V
Horsepower
15 HP
RPM
3600
Phase
Three Phase
Frame
215T
Enclosure
ODP
Hertz
60 Hz
Amperage
36.0/18.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
GT0021A Marathon 15 hp 3600 RPM 215T Frame 230/460V Open Drip Marathon Electric Motor
The GT0021A is a general-purpose, three-phase electric motor designed for a wide range of industrial applications. It replaces models such as Leeson 140754.00, B199698.00, and 170064.00, offering reliable performance with a rigid base mount and keyed shaft.
Key Specifications
- Horsepower: 15 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 36.0/18.0 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 215T Frame

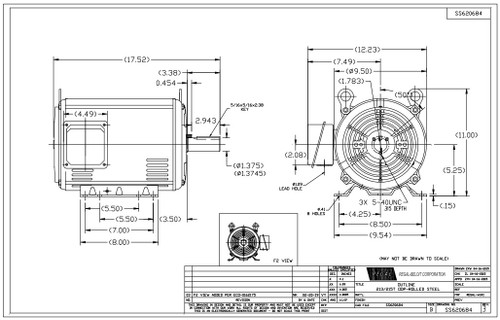

- Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base mount for secure installation and a keyed shaft to ensure proper coupling with driven equipment. The wiring diagram is conveniently located on the motor nameplate to assist with electrical connections. The motor is equipped with Class F insulation for enhanced thermal protection.
Cross Reference
- Leeson 140754.00, B199698.00, 170064.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| STATUS | IN STOCK |
| Voltage | 230/460V |
| Horsepower | 15 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 215T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 36.0/18.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- Leeson 140754.00, B199698.00, 170064.00
