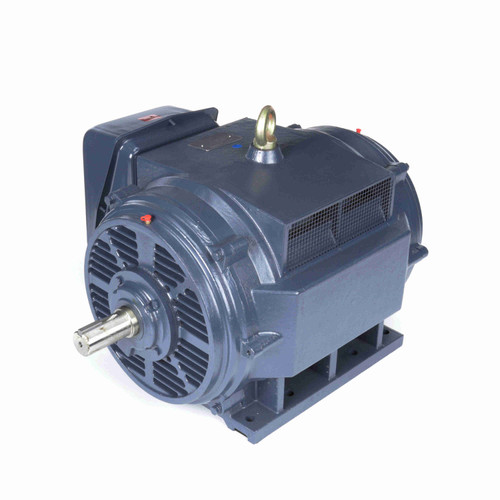

GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor
GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor

Marathon

GT0051A Marathon 150 hp 3600 RPM 405TS Frame 460V Open Drip Marathon Electric Motor

(No reviews) Write a Review
$12,467.02
$9,088.00
SKU MGT0051
Availability SUBJECT TO AVAILABILITY
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 150 HP
RPM 3600
Phase Three Phase
Frame 405TS
Enclosure ODP
Hertz 60 Hz
Amperage 165.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description



  • 150 hp 3600 RPM, 165.0 amps 460 Volts 60hz. Three Phase Motor
  • NEMA 405TS Frame Keyed Shaft 2 1/8 " Diameter x 4 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

405TSTDCD6007 Replaces Leeson 171449.60, B199728.00; Dayton 44N993

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 150 HP
RPM 3600
Phase Three Phase
Frame 405TS
Enclosure ODP
Hertz 60 Hz
Amperage 165.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
