131541.00 Leeson | 2 hp 1740 RPM 182T Frame TEFC (Farm Duty) 115/208-230 volts

131541.00 Leeson 2 hp 1740 RPM 182T Frame TEFC (Farm Duty) Motor

This Leeson 2 hp farm duty electric motor is designed for demanding industrial and agricultural applications, replacing Century/AO Smith K213 and K213M2 models. It is ideal for woodworking machines and equipment exposed to dust, dirt, oil, and other contaminants.

Key Specifications

• Horsepower: 2 hp
• RPM: 1740
• Voltage: 115/208-230 V
• Amperage: 24.8/12.4 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 182T Frame
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This motor features a flat rigid base mount with six mounting holes for standard installation. It includes manual overload protection and a service factor of 1.15. Farm duty enhancements include double sealed bearings with Exxon grease rated for -20°F to +350°F, a gasketed junction box and capacitor covers, and a rubber boot over the reset button for added protection. The motor ships via freight truck due to its size and weight.

Cross Reference

• Century/AO Smith K213, K213M2

Warranty

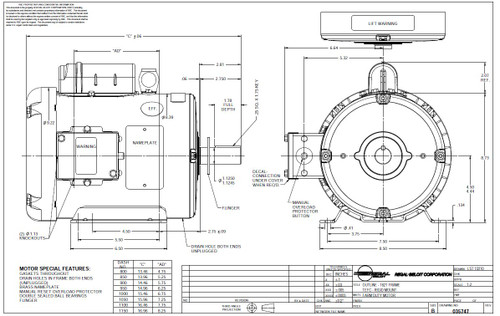

• Dimensional Drawing
