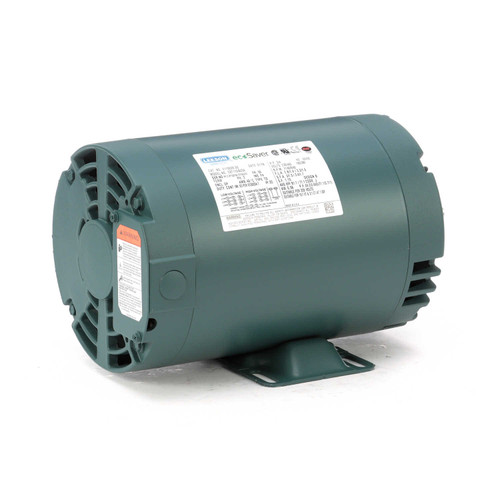

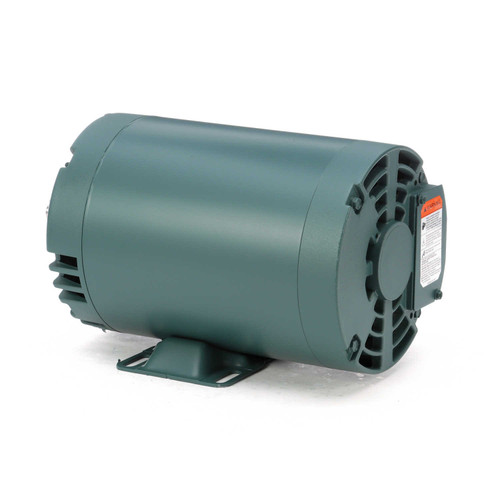

E110028.00 Leeson | 3/4 hp 1140 RPM 56 Frame 230/460V Open Drip

SKU:
E110028
Weight:
36.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $500.95
Now: $455.41
  • 3/4 hp 1140 RPM, 2.8/1.4 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

C6T11DB23AReplaces Leeson 110028.00, E110028.00
