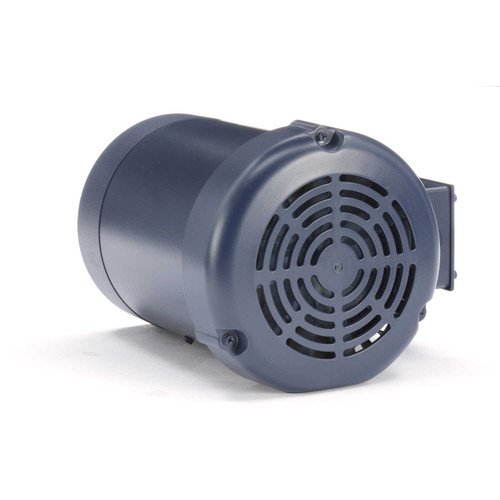

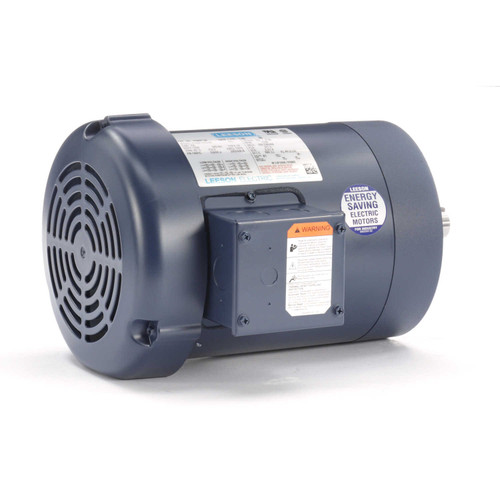

120097.00 Leeson | 3/4 hp 1140 RPM 143TC Frame TEFC C-Face (No Base) 208-230/460V

• 3/4 hp 1200 RPM, 3.0/1.5 amps 208-230/460 Volts 60hz. Three Phase Motor

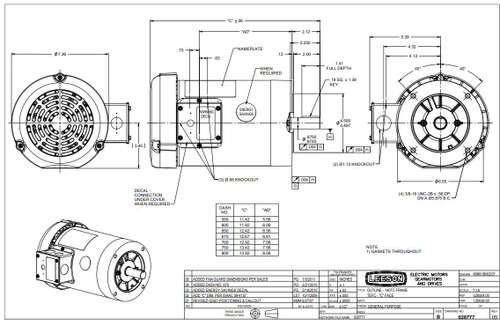

• NEMA 143TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
• Service Factor: 1.15 - overload protection = None
• No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C143T11FC1H, 120097.00 Replaces G120097.00
