sale
Marathon

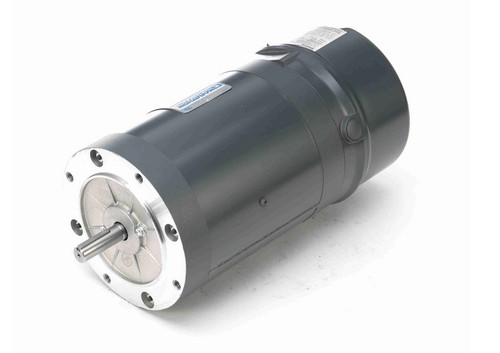

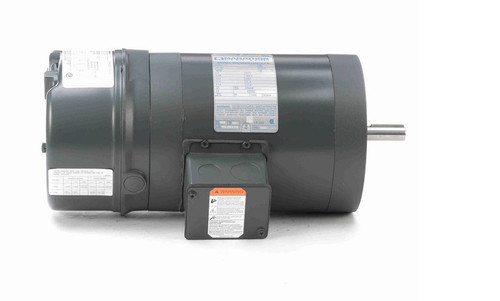

K460 Marathon 3/4 hp 3 phase 1800 RPM 56C Frame 230/460V TENV Marathon Electric Brake Motor
(No reviews)
Write a Review
Write a Review
Marathon
K460 Marathon 3/4 hp 3 phase 1800 RPM 56C Frame 230/460V TENV Marathon Electric Brake Motor
$1,266.50
$1,115.04
SKU
MK460
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
3/4 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TENV
Hertz
60 Hz
Amperage
2.5/1.3 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
- 3/4 hp 1800 RPM, 2.5/1.3 amps 230/460 Volts 60hz. 3 phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload protection = None
- Reversible, No Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated, 5K49PN4565
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 2.5/1.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
