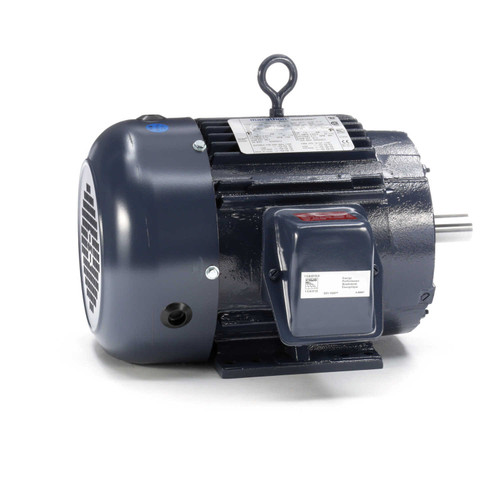

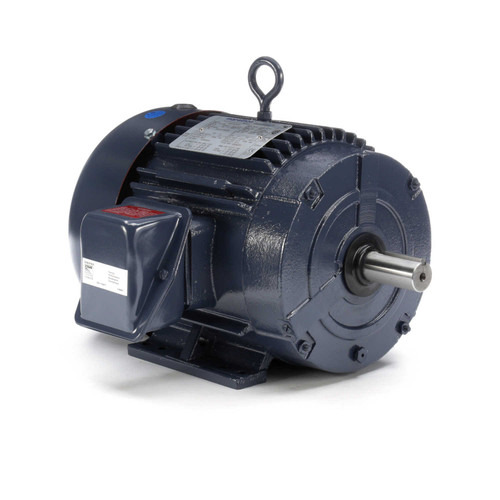

GT1009A Marathon 3 hp 3450 RPM 182T Frame 230/460V TEFC Marathon Electric Motor

SKU:
GT1009A
Weight:
86.00 LBS
Shipping:
Calculated at Checkout
STATUS:
DISCONTINUED
$0.00

CURRENTLY OUT OF STOCK

Motor Discontinued

  • 3 hp 3600 RPM, 8.0/4.0 amps 230/460 Volts 60hz. Three Phase Motor

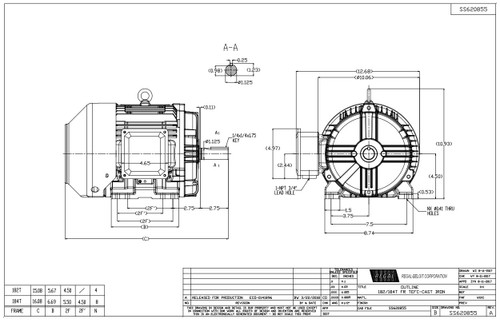

  • NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Dual Branded Leeson/Marathon Electric Motor
Replaces Models: 199003.00, B199003.00, C182T34FB1, 182TTFCD6001, Dayton 44Z310
