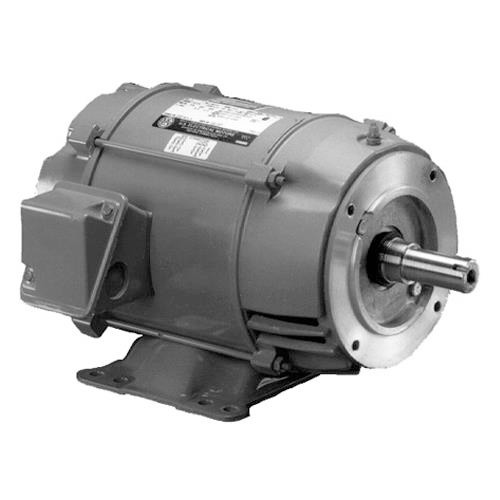

D30P2DS Nidec | 30 hp 1800 RPM 286TS Frame 208-230/460V ODP Electric Motor Nidec

D30P2DS Nidec | 30 hp 1800 RPM 286TS Frame 208-230/460V ODP Electric Motor Nidec

SKU:
D30P2DS
Availability:
Please email for availability
Weight:
250.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,999.00
Now: $1,785.10

CURRENTLY OUT OF STOCK

  • 30 hp 1800 RPM, 69.0/34.0 amps 208-230/460V Three Phase
  • NEMA 286TS Frame Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • "C" Dimension 23.5"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
