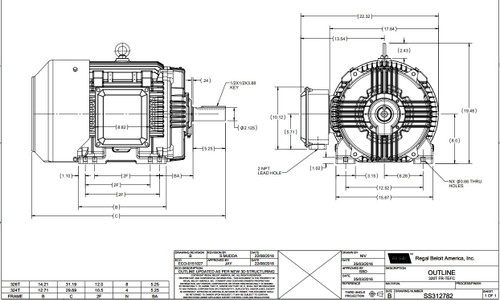

GT1034A Marathon 40 hp 1800 RPM 324T Frame 230/460V TEFC Marathon Electric Motor

GT1034A Marathon 40 hp 1800 RPM 324T Frame 230/460V TEFC Marathon Electric Motor

The GT1034A is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It replaces Leeson models 170019.60, 199028.00, B199028.00 and Dayton 44Z360, offering a robust solution with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 40 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 95.0/47.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 324T
• Shaft Dimensions: 2 1/8" Diameter x 4 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a keyed shaft for secure installation and easy alignment. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. Designed with Class F insulation and a service factor of 1.15, it provides durability and reliable overload tolerance without built-in overload protection.

Cross Reference

• Leeson 170019.60, 199028.00, B199028.00; Dayton 44Z360

Warranty

1 Year Manufacturer Warranty
