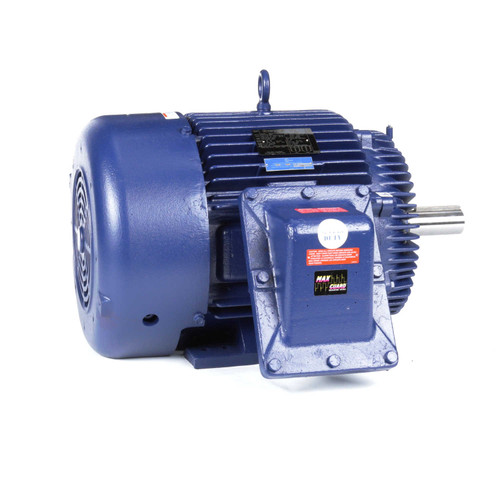

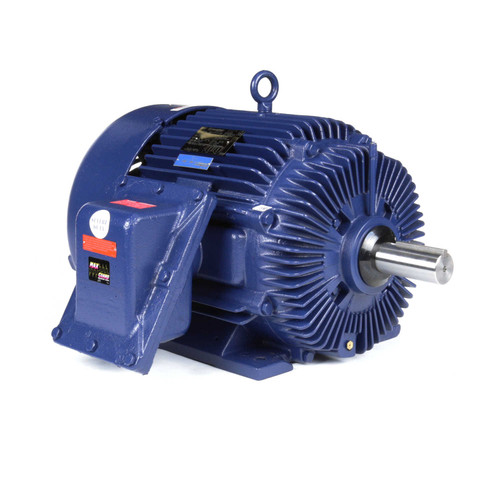

E567 Marathon 40 hp 1800 RPM 324T 230/460V TEFC Explosion Proof Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
E567 Marathon 40 hp 1800 RPM 324T 230/460V TEFC Explosion Proof Marathon Electric Motor
$5,520.00
$5,041.54
SKU
ME567
UPC
7.23E+11
Availability
Subject to Availability
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
40 HP
RPM
1800
Phase
Three Phase
Frame
324T
Enclosure
TEFC
Hertz
60 Hz
Amperage
95.0/47.5 Amps
Service Factor
1.15
Insulation Class
Class F
- 40 hp 1800 RPM, 95.0/47.5 amps 230/460 Volts 60hz. Three Phase Motor
- NEMA 324T Frame Keyed Shaft 2 1/8 " Diameter x 4 1/4"
- Explosion Proof: Class 1, Group C & D; Class II, Group F & G
- Service Factor: 1.15, Class F Insulation
- Normally closed thermostats (must be connected to control circuit)
- Meets temperature code T3B, Shaft slinger
- TEFC - Explosion Proof Fan cooled
- 1 Year Manufacture Warranty
Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.
324TTGS6529 Replaces Leeson 825101.00, Dayton 6KWH6
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 40 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 324T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 95.0/47.5 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
